| Class | Product name | EAN | Isolation | Input voltage AC | Input voltage DC | Nominal output power
Min ≤ 100 W
Max ≥ 100 W | Nominal output voltage
Min ≤ 24 V
Max ≥ 24 V | Nominal output current | Power factor [λ] | Inrush current | Max. ECG no. on circuit breaker 16 A (B)3 | Efficiency (max.) [%] | Ripple (100 Hz) [%] | Dimming Interface | Touch DIM Corridor function | Constant lumen function | DALI-2 Luminaire / Energy / Diagnostic Data* | Programming interface | Programming device | Emergency Mode | Suitable for Emergency Lighting2 | ECG lifetime1 [h] | Ta [°C] | Tc [°C] | PC** | Type of protection | Length [mm] | Width [mm] | Height [mm] | Certificates & approbations | Standard pack
[pcs.] |
| Constant Voltage | Non-dimmable |
|
 | ELEMENT 120/220-240/24 G2 🛈Product family benefits - High efficiency up to 92%
- Higher quality of light thanks to 3% output ripple current
- Excellent price/performance ratio
- Class II design for wide application
- 3 years guarantee
Areas of applicationion - Decorative lighting in hospitality, restaurants and Shops
- Shelf lighting
- Cove lighting
- Under cabinet lighting
Type of protection
IP20 | Certificates & Approbations
CE, RCM, CCC, MM |
◄ | 4052899605541 | SELV | 198…264 V | not relevant | 120 W | 24 V | not relevant mA | 0.95 | < 32.0 A🛈 At 520 μs | 8 | 89 | | not relevant | No | No | No | n/a | n/a | No | No | 30k | -20…+50 | 90 | I, II | IP20 | 260.00 | 40.00 | 31.00 | CE, RCM, CCC, MM | 20 |
ELEMENT 180/220-240/24 G2 🛈Product family benefits - High efficiency up to 92%
- Higher quality of light thanks to 3% output ripple current
- Excellent price/performance ratio
- Class II design for wide application
- 3 years guarantee
Areas of applicationion - Decorative lighting in hospitality, restaurants and Shops
- Shelf lighting
- Cove lighting
- Under cabinet lighting
Type of protection
IP20 | Certificates & Approbations
CE, RCM, CCC |
◄ | 4052899605565 | SELV | 198…264 V | not relevant | 180 W | 24 V | not relevant mA | 0.90 | < 40.0 A🛈 At 765 µs | 5 | 91 | | not relevant | No | No | No | n/a | n/a | No | No | 30k | -20…+50 | 90 | I, II | IP20 | 300.00 | 40.00 | 31.00 | CE, RCM, CCC | 20 |
| ELEMENT 250/220-240/24 G2 🛈Product family benefits - High efficiency up to 92%
- Higher quality of light thanks to 3% output ripple current
- Excellent price/performance ratio
- Class II design for wide application
- 3 years guarantee
Areas of applicationion - Decorative lighting in hospitality, restaurants and Shops
- Shelf lighting
- Cove lighting
- Under cabinet lighting
Type of protection
IP20 | Certificates & Approbations
CE, RCM, CCC |
◄ | 4062172333467 | SELV | 198…264 V | not relevant | 250 W | 24 V | not relevant mA | > 0.95 | < 70.0 A🛈 At 250 µs | 3 | 92 | | not relevant | No | No | No | n/a | n/a | No | No | 30k | -20…+50 | 90 | | IP20 | 375.00 | 50.00 | 35.00 | CE, RCM, CCC | 10 |
| Constant voltage ECG for LED modules | Non-dimmable |
|

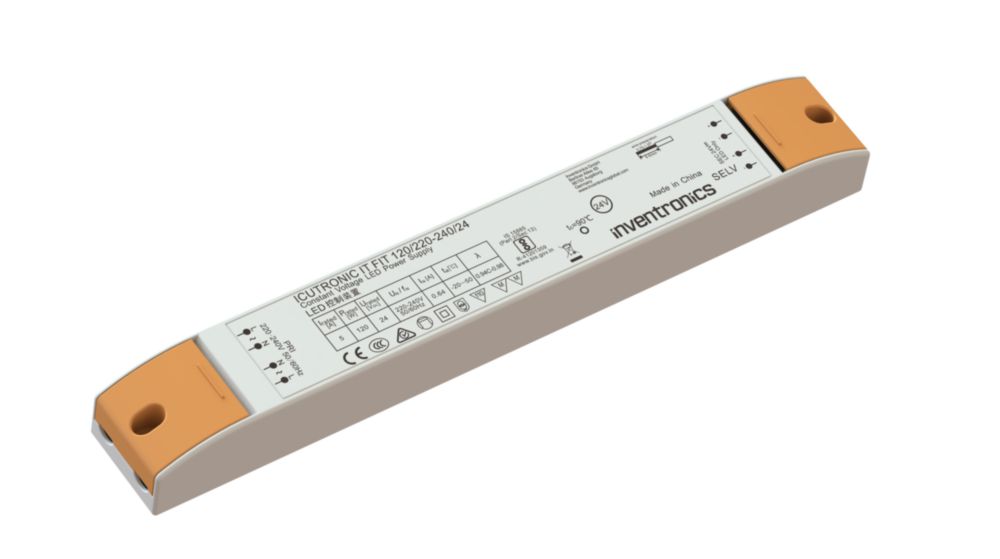

 | IT FIT 120/220-240/24 🛈Product family benefits - Class II design for wide application
- Well design for Flex and Signage
- Excellent price/quality/watt ratio
Areas of applicationion - Hospitality – decorative lighting, night light
- Residential – cove lighting, under cabinet lighting
- Shops – decorative lighting, shelf lighting
- Restaurants – decorative lighting
Type of protection
IP20 | Certificates & Approbations
CE, CCC, RCM, MM |
◄ | 4062172168045 | | 198…264 V | not relevant | 120 W | 24 V | not relevant mA | 0.98 | 53.0 A🛈 twidth = 200 µs (measured at 50 % Ipeak) | 7 | 90 | | not relevant | No | No | No | n/a | n/a | No | No | 50k | -20…+50 | 90 | I, II | IP20 | 284.00 | 40.00 | 30.00 | CE, CCC, RCM, MM | 30 |
IT FIT 180/220-240/24 🛈Product family benefits - Class II design for wide application
- Well design for Flex and Signage
- Excellent price/quality/watt ratio
Areas of applicationion - Hospitality – decorative lighting, night light
- Residential – cove lighting, under cabinet lighting
- Shops – decorative lighting, shelf lighting
- Restaurants – decorative lighting
Type of protection
IP20 | Certificates & Approbations
CE, CCC, RCM |
◄ | 4062172168069 | | 198…264 V | not relevant | 180 W | 24 V | not relevant mA | 0.98 | 59.0 A🛈 twidth = 216 µs (measured at 50 % Ipeak) | 5 | 92 | | not relevant | No | No | No | n/a | n/a | No | No | 50k | -20…+50 | 90 | I, II | IP20 | 324.00 | 40.00 | 30.00 | CE, CCC, RCM | 20 |
| IT FIT 250/220-240/24 🛈Product family benefits - Class II design for wide application
- Well design for Flex and Signage
- Excellent price/quality/watt ratio
Areas of applicationion - Hospitality – decorative lighting, night light
- Residential – cove lighting, under cabinet lighting
- Shops – decorative lighting, shelf lighting
- Restaurants – decorative lighting
Type of protection
IP20 | Certificates & Approbations
CE, CCC, RCM |
◄ | 4062172168083 | | 198…264 V | not relevant | 250 W | 24 V | not relevant mA | 0.98 | 66.0 A🛈 twidth = 260 µs (measured at 50 % Ipeak) | 2 | 93 | | not relevant | No | No | No | n/a | n/a | No | No | 50k | -20…+50 | 90 | I, II | IP20 | 375.00 | 50.00 | 35.00 | CE, CCC, RCM | 10 |
| Constant Voltage | Non-dimmable | Outdoor |
|
 | OT FIT 150/220-240/24 P 🛈Areas of applicationion - For example luminous signage in areas such as hotels
- Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
Type of protection
IP66/IP67 | Certificates & Approbations
CE, CCC, TISI, RCM |
◄ | 4062172085601 | SELV | 198…264 V | not relevant | 150 W | 24 V | not relevant mA | 0.95 | 55.0 A🛈 At Full Load, 240VAC, Cold Start Duration=500uS 50%Ipk—50%Ipk | 10 | 92 | | not relevant | No | No | No | n/a | n/a | No | No | 50k | -40…+50 | 90 | I | IP66/IP67 | 240.00 | 53.00 | 31.50 | CE, CCC, TISI, RCM | 15 |
OT FIT 200/220-240/24 P 🛈Areas of applicationion - For example luminous signage in areas such as hotels
- Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
Type of protection
IP66/IP67 | Certificates & Approbations
CE, CCC, TISI, RCM |
◄ | 4062172085649 | SELV | 198…264 V | not relevant | 200 W | 24 V | not relevant mA | 0.95 | 55.0 A🛈 At Full Load, 240VAC, Cold Start Duration=600uS 50%Ipk—50%Ipk | 6 | 93 | | not relevant | No | No | No | n/a | n/a | No | No | 50k | -40…+50 | 90 | I | IP66/IP67 | 215.00 | 53.00 | 31.50 | CE, CCC, TISI, RCM | 15 |
| OT FIT 300/220-240/24 P 🛈Areas of applicationion - For example luminous signage in areas such as hotels
- Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
Type of protection
IP66/IP67 | Certificates & Approbations
CE, CCC, TISI, RCM |
◄ | 4062172085687 | SELV | 198…264 V | not relevant | 300 W | 24 V | not relevant mA | 0.95 | 60.0 A🛈 At Full Load, 240VAC, Cold Start Duration=800uS 50%Ipk—50%Ipk | 4 | 93 | | not relevant | No | No | No | n/a | n/a | No | No | 50k | -40…+50 | 90 | I | IP66/IP67 | 260.00 | 68.00 | 39.60 | CE, CCC, TISI, RCM | 10 |
| CV Dimmers |
|
 | OT DMX DIM 5CH 🛈Product family benefits - Control of white, Tunable White, RGB, RGBW and RGBTW LED modules
- Independent housing for ceiling installation
- Minimal installation effort
- Selectable PWM frequency
Areas of applicationion - Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings, gyms
Dimming interface: DMX512 protocol Type of protection
IP20 | Certificates & Approbations
CE |
◄ | 6977078993838 | Non isolated | not relevant | 12 V, 24 V, 48 V V | 576 W | 12 V, 24 V, 48 V | | | | not relevant | 95 | | DMX512 protocol | No | No | No | n/a | n/a | No | No | 50k | -10…+50 | 90 | I, II | IP20 | 172.00 | 42.00 | 20.00 | CE | 20 |
OT DIM 🛈Product family benefits - 1…10 V control port basic isolated
Areas of applicationion - Suitable for indoor SELV installations
Dimming interface: 1…10 V Type of protection
IP20 | Certificates & Approbations
CE, VDE |
◄ | 4050300943459 | SELV equivalent | 10.5…24 V | 10.5…24 V | 120 W | 10.5…24 V | not relevant mA | not relevant | not relevant | not relevant | 96 | | 1…10 V | No | No | No | n/a | n/a | No | No | 50k | -20…+50 | 70 | II | IP20 | 172.00 | 42.00 | 20.00 | CE, VDE | 20 |
| OT WI DIM 5CH CA 🛈Product family benefits - Control of white, Tunable White, RGB, RGBW and RGBTW LED modules
- Independent housing for ceiling installation
- Support of systems based on CASAMBI lighting control solutions
- Minimal installation effort
- Dry contacts for optional connection to any commercial pushbutton
Areas of applicationion - Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings
Type of protection
IP20 | Certificates & Approbations
CE, UKCA |
◄ | 4062172382274 | Non isolated | not relevant | 12…48 V | 576 W | 12…48 V | not relevant mA | | | | | | not relevant | No | No | No | n/a | n/a | No | No | | -10…+60 | 75 | I, II | IP20 | 186.00 | 29.00 | 22.00 | CE, UKCA | 20 |
| OTi DALI DIM 1-4CH D 🛈Product family benefits - Very precise dimming thanks to digital light control
Areas of applicationion - Suitable for indoor installations
- Separate installation (ceiling mounting)
Dimming interface: DALI-2, Corridor, Touch DIM Type of protection
IP20 | Certificates & Approbations
CE, EAC, RCM, ENEC 05 |
◄ | 4062172166010 | SELV | not relevant | not relevant | 240 W | 12…48 V | not relevant mA | | | | | | DALI-2, Corridor, Touch DIM | Yes | No | No | n/a | n/a | No | No | 50k | -20…+50 | 60 | I, II | IP20 | 181.00 | 42.00 | 20.00 | CE, EAC, RCM, ENEC 05 | 20 |
| CV Power supplies | Dimmable |
|
 | OT WI 160/220-240/24 2CH CA 🛈Product family benefits - Power supply and control of white, Tunable White, Tunable Warm White, Dim to Warm
- Power supply and control of RGB and RGBW LED modules
- Driver with integrated CASAMBI lighting control system
- Slim form factor for installation in light boxes
- No stroboscopic effect thanks to patented high PWM frequency management ( 2 kHz)
Areas of applicationion - Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings
Dimming interface: Bluetooth CASAMBI Programming interface: CASAMBI Type of protection
IP20 | Certificates & Approbations
CE, ENEC 10, UKCA, RCM, VDE, VDE-ENEC |
◄ | 4052899632042 | SELV | 198…264 V | 176…276 V | 160 W | 24.2 V | not relevant mA | 0.92C…0.99 | 57.0 A | 7 | | < 1 | Bluetooth CASAMBI | No | No | No | CASAMBI | n/a | No | No | 50k k / Tc MAX | -20…+45 | 90 | I, II | IP20 | 300.00 | 50.00 | 32.00 | CE, ENEC 10, UKCA, RCM, VDE, VDE-ENEC | 20 |
OT FIT 150 /220-240/24 PC 🛈Product family benefits - IP rating: IP20
- High efficiency
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Independent installation possible
Areas of applicationion - Suitable for luminaires of protection classes I and II
- Hospitality – decorative lighting, night light
- Restaurants – decorative lighting
- Shops – decorative lighting, shelf lighting
- Residential – cove lighting, under cabinet lighting
Dimming interface: Phase Cut Type of protection
IP20 | Certificates & Approbations
CE, ENEC, CCC, RCM, UKCA, EAC, SELV, CB |
◄ | 4062172237642 | SELV | 198…264 V | not relevant | 60.5…151.3 W | 24.2 V | not relevant mA | > 0.95 | < 60.0 A🛈 twidth = 250 µs (measured at 50 % Ipeak) | 4 | 92 | 5 | Phase Cut | No | No | No | n/a | n/a | No | No | 50k | -20…+45 | 80 | I | IP20 | 170.00 | 76.00 | 30.00 | CE, ENEC, CCC, RCM, UKCA, EAC, SELV, CB | 10 |
| OTi DALI 160/220-240/24 1CH G3 🛈Product family benefits - Intelligent power matching thanks to Smart power supply
- Form factor for mounting on the cove or in luminaires
- No stroboscopic effect thanks to patented high PWM frequency management ( 2 kHz)
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- DALI message detection "LED Module failure"
- IP rating: IP20
Areas of applicationion - Cove lighting, wall washer, corridor, handrail, luminous ceilings
- Suitable for use in luminaires of protection class I and II
Dimming interface: DALI-2, Corridor, Touch DIM Type of protection
IP20 | Certificates & Approbations
BIS, CCC, EAC, EL, ENEC 10, RCM, VDE |
◄ | 4062172274388 | SELV | 198…264 V | 176…276 V | 160 W | 24 V | not relevant mA | 0.92C…0.99 | 57.0 A | 7 | | | DALI-2, Corridor, Touch DIM | Yes | No | No | n/a | n/a | No | No | 50k | -20…+45 | 75 | I, II | IP20 | 300.00 | 50.00 | 35.00 | BIS, CCC, EAC, EL, ENEC 10, RCM, VDE | 20 |
| OTi DALI 160/220-240/ 24 2CH DT6/8 G3 🛈Product family benefits - Intelligent power matching thanks to Smart power supply
- Form factor for mounting on the cove or in luminaires
- No stroboscopic effect thanks to patented high PWM frequency management ( 2 kHz)
- Suitable for installation in emergency lighting systems according to EN 60598-2-22
- DALI message detection "LED Module failure"
- IP rating: IP20
Areas of applicationion - Cove lighting, wall washer, corridor, handrail, luminous ceilings
- Suitable for use in luminaires of protection class I and II
Dimming interface: DALI-2, Corridor, Touch DIM Type of protection
IP20 | Certificates & Approbations
BIS, CCC, EAC, EL, ENEC 10, RCM, VDE |
◄ | 4062172274326 | SELV | 198…264 V | 176…276 V | 160 W | 24 V | not relevant mA | 0.92C…0.99 | 57.0 A | 7 | | | DALI-2, Corridor, Touch DIM | Yes | No | No | n/a | n/a | No | No | 50k | -20…+45 | 75 | I, II | IP20 | 300.00 | 50.00 | 35.00 | BIS, CCC, EAC, EL, ENEC 10, RCM, VDE | 20 |
| CV Power supplies | Dimmable | Outdoor |
|
 | OT 100/220-240/24 DIM P 🛈Product family benefits - Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
- Dimming range: 1…100 %
Areas of applicationion - Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Dimming interface: 1…10 V Type of protection
IP66/IP67 | Certificates & Approbations
ENEC, RCM, CCC, EAC |
◄ | 4052899545861 | SELV | 198…264 V | 176…276 V | 100 W | 24.2 V | not relevant mA | 0.95 | 60.0 A | 16 | 90 | | 1…10 V | No | No | No | n/a | n/a | No | No | 50k | -30…+55 | 80 | I | IP66/IP67 | 240.00 | 50.00 | 34.00 | ENEC, RCM, CCC, EAC | 10 |
OT 130/220-240/24 DIM P 🛈Product family benefits - Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
- Dimming range: 1…100 %
Areas of applicationion - Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Dimming interface: 1…10 V Type of protection
IP66/IP67 | Certificates & Approbations
ENEC, RCM, CCC, EAC |
◄ | 4052899545885 | SELV | 198…264 V | 176…276 V | 130 W | 24.2 V | not relevant mA | 0.95 | 60.0 A | 13 | 90.5 | | 1…10 V | No | No | No | n/a | n/a | No | No | 50k | -30…+55 | 80 | I | IP66/IP67 | 220.00 | 63.00 | 37.00 | ENEC, RCM, CCC, EAC | 10 |
| OT 250/220-240/24 DIM P 🛈Product family benefits - Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
- Dimming range: 1…100 %
Areas of applicationion - Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Dimming interface: 1…10 V Type of protection
IP66/IP67 | Certificates & Approbations
ENEC, RCM, CCC, EAC |
◄ | 4052899545908 | SELV | 198…264 V | 176…276 V | 250 W | 24.2 V | not relevant mA | 0.95 | 75.0 A | 8 | 92 | | 1…10 V | No | No | No | n/a | n/a | No | No | 50k | -30…+55 | 85 | I | IP66/IP67 | 265.00 | 68.00 | 40.00 | ENEC, RCM, CCC, EAC | 10 |
| OTi DALI 210/220-240/24 1-4 CH PHASE OUT🛈Product family benefits - Long lasting and high reliability
- From 1 to 4 channels to arbitrarily distribute the power
- Suitable for installation under sunlight
- IP66/IP67 Salt mist resistant and DC functionality
- AstroDim functionality for automatic dimming and turn on/off
Areas of applicationion - Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
- Suitable for use in luminaires of protection class I
Dimming interface: DALI-2 Type of protection
IP66/IP67 | Certificates & Approbations
BIS, CCC, CE, EAC, ENEC 10, RCM, VDE |
◄ | 4062172032087 | SELV | 198…264 V | 176…276 V | 210 W | 24.7 V | not relevant mA | > 0.95 | 3.7 A | 11 | 93 | | DALI-2 | No | No | No | n/a | n/a | No | Yes | 50k | -20…+60 | 85 | I | IP66/IP67 | 330.00 | 69.00 | 37.00 | BIS, CCC, CE, EAC, ENEC 10, RCM, VDE | 6 |
| OTi DALI 100/220-240/24 1-4 CH P PHASE OUT🛈Product family benefits - Long lasting and high reliability
- From 1 to 4 channels to arbitrarily distribute the power
- Suitable for installation under sunlight
- IP66/IP67 Salt mist resistant and DC functionality
- AstroDim functionality for automatic dimming and turn on/off
Areas of applicationion - Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
- Suitable for use in luminaires of protection class I
Dimming interface: DALI-2 Type of protection
IP66/IP67 | Certificates & Approbations
CE, EAC, ENEC 10, RCM, VDE |
◄ | 4062172119191 | SELV | 198…264 V | 176…276 V | 100 W | 24 V | not relevant mA | > 0.95 | 55.0 A | 17 | 93 | | DALI-2 | No | No | No | n/a | n/a | No | No | 50k | -20…+60 | 75 | I | IP66/IP67 | 237.00 | 69.00 | 37.00 | CE, EAC, ENEC 10, RCM, VDE | 6 |
| OTi DALI 210/220-240/244CHDT6/8 P 🛈Product family benefits - Long lasting and high reliability
- From 1 to 4 channels to arbitrarily distribute the power
- Suitable for installation under sunlight
- IP66/IP67 Salt mist resistant and DC functionality
- AstroDim functionality for automatic dimming and turn on/off
Areas of applicationion - Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
- Suitable for use in luminaires of protection class I
Dimming interface: DALI-2 Type of protection
IP66/IP67 | Certificates & Approbations
ENEC 10, RCM, VDE, UKCA, EL, MM |
◄ | 4062172364263 | SELV | 198…264 V | 176…276 V | 0…210 W | 24.7 V | 8.5 A | 0.95…0.99 | 3.7 A | 11 | 93 | | DALI-2 | No | No | No | n/a | n/a | No | Yes | 50k | -30…+55 | 80 | I | IP66/IP67 | 330.00 | 80.00 | 47.00 | ENEC 10, RCM, VDE, UKCA, EL, MM | 6 |
| OTi DALI 100/220-240/244CHDT6/8 P NEW🛈Product family benefits - Long lasting and high reliability
- From 1 to 4 channels to arbitrarily distribute the power
- Suitable for installation under sunlight
- IP66/IP67 Salt mist resistant and DC functionality
- AstroDim functionality for automatic dimming and turn on/off
Areas of applicationion - Public squares and architecture lighting
- Suitable for indoor and outdoor SELV installations
- Suitable for use in luminaires of protection class I
Dimming interface: DALI-2 Type of protection
IP66/IP67 | Certificates & Approbations
ENEC 10, RCM, VDE, UKCA, EL, MM |
◄ | 4062172364324 | SELV | 198…264 V | 176…276 V | 0…100 W | 24.7 V | not relevant mA | 0.95…0.99 | 57.0 A | 13 | 93 | | DALI-2 | No | No | No | n/a | n/a | No | Yes | 50k | -30…+55 | 75 | I | IP66/IP67 | 237.00 | 80.00 | 40.00 | ENEC 10, RCM, VDE, UKCA, EL, MM | 6 |
| CV Power supplies | Non-dimmable | Outdoor |
|
 | OT 100/220-240/24 P 🛈Product family benefits - Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
Areas of applicationion - Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Type of protection
IP66/IP67 | Certificates & Approbations
ENEC, RCM, CCC, EAC, CE |
◄ | 4052899545984 | SELV | 198…264 V | 176…250 V | 100 W | 24.2 V | not relevant mA | 0.95 | 60.0 A | 16 | 90 | | not relevant | No | No | No | n/a | n/a | No | Yes | 50k | -30…+55 | 80 | I | IP66/IP67 | 240.00 | 50.00 | 34.00 | ENEC, RCM, CCC, EAC, CE | 10 |
OT 130/220-240/24 P 🛈Product family benefits - Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
Areas of applicationion - Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Type of protection
IP66/IP67 | Certificates & Approbations
ENEC, RCM, CCC, EAC, CE |
◄ | 4052899546004 | SELV | 198…264 V | 176…250 V | 130 W | 24.2 V | not relevant mA | 0.95 | 60.0 A | 13 | 90.5 | | not relevant | No | No | No | n/a | n/a | No | Yes | 50k | -30…+55 | 80 | I | IP66/IP67 | 220.00 | 63.00 | 37.00 | ENEC, RCM, CCC, EAC, CE | 10 |
| OT 250/220-240/24 P 🛈Product family benefits - Large range of products from 20 W to 250 W
- Installation in very cold and hot environments
- Very stable output power
- High electronical reversible short-circuit, overload, overtemperature protection
- Smart Power Supply: boosting power to turn on cold LEDs
- Independent installation possible
Areas of applicationion - Facades, public squares, cruise ships
- Signage
- Suitable for indoor and outdoor installations
Type of protection
IP66/IP67 | Certificates & Approbations
ENEC, RCM, CCC, EAC, CE |
◄ | 4052899546028 | SELV | 198…264 V | 176…250 V | 250 W | 24.2 V | not relevant mA | 0.95 | 75.0 A | 8 | 92 | | not relevant | No | No | No | n/a | n/a | No | Yes | 50k | -30…+55 | 85 | I | IP66/IP67 | 265.00 | 68.00 | 40.00 | ENEC, RCM, CCC, EAC, CE | 10 |
